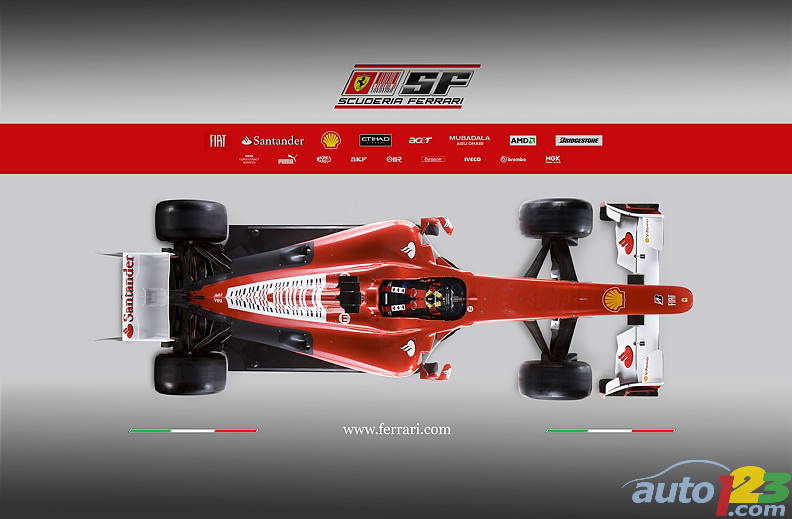

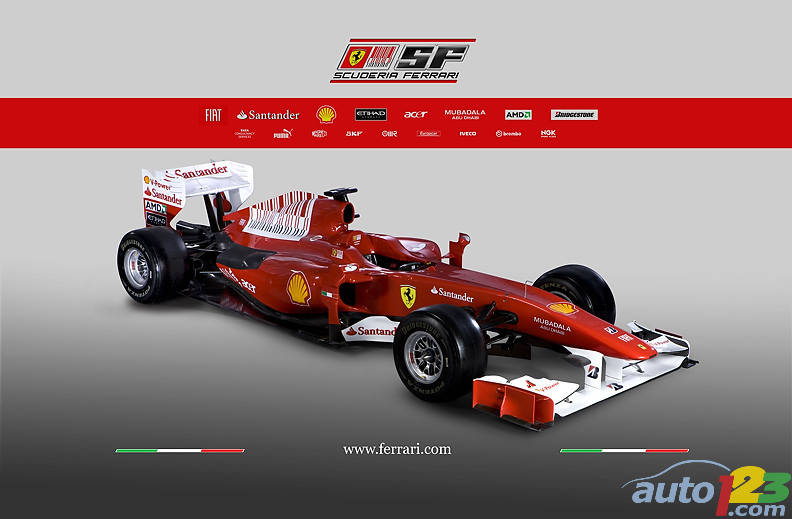

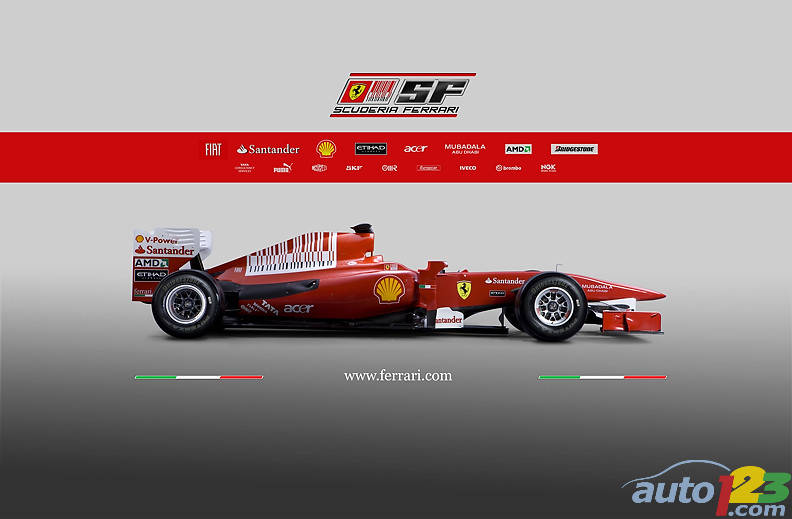

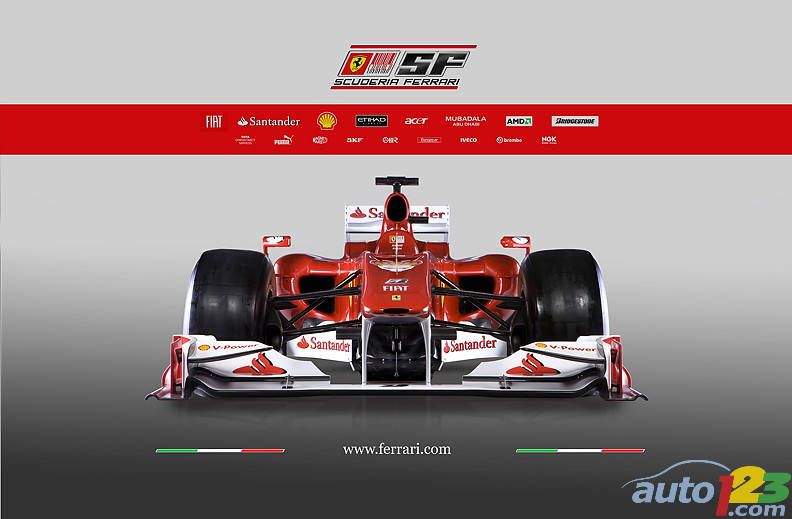

Here are the technical specifications and the first photos of the new F10 Formula 1 single-seater launched Thursday in Maranello, Italy.
Technical specifications:
Chassis
Carbon-fibre and honeycomb composite structure
Ferrari longitudinal gearbox
Limited-slip differential
Semiautomatic sequential electronically controlled gearbox – quick shift
Number of gears: 7 + reverse
Brembo ventilated carbon-fibre disc brakes
Independent suspension, push-rod activated torsion springs front and rear
Weight with water, lubricant and driver: 620 kg
BBS Wheels (front and rear): 13”
Engine
Type: 056
Number of cylinders: 8
Cylinder block in sand cast aluminium: V 90°
Number of valves: 32
Pneumatic distribution
Total displacement: 2398 cm3
Piston bore: 98 mm
Weight: > 95 kg
Electronic injection and ignition
Fuel: Shell V-Power
Lubricant: Shell Helix Ultra
photo:Ferrari
Technical specifications:
Chassis
Carbon-fibre and honeycomb composite structure
Ferrari longitudinal gearbox
Limited-slip differential
Semiautomatic sequential electronically controlled gearbox – quick shift
Number of gears: 7 + reverse
Brembo ventilated carbon-fibre disc brakes
Independent suspension, push-rod activated torsion springs front and rear
Weight with water, lubricant and driver: 620 kg
BBS Wheels (front and rear): 13”
Engine
Type: 056
Number of cylinders: 8
Cylinder block in sand cast aluminium: V 90°
Number of valves: 32
Pneumatic distribution
Total displacement: 2398 cm3
Piston bore: 98 mm
Weight: > 95 kg
Electronic injection and ignition
Fuel: Shell V-Power
Lubricant: Shell Helix Ultra
photo:Ferrari
