Concept BlueZERO - the triad of electric mobility
Mercedes-Benz is showing the way to environmentally compatible electric mobility with the near-series Concept BlueZERO. The vehicle’s intelligent modular concept enables a single vehicle architecture to be used to create three models with different drive system configurations.
*

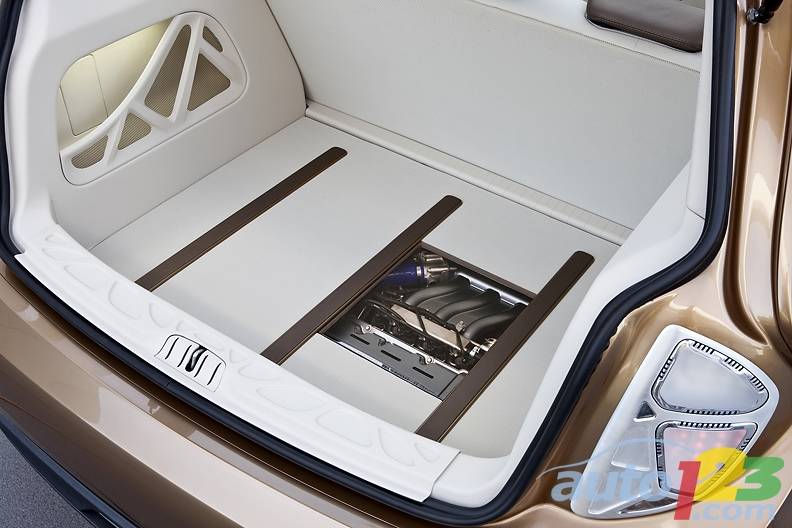

The BlueZERO E-CELL PLUS is equipped with an electric drive and a supplemental combustion engine with an electrical generator (range extender). The car has a total range of up to 600 kilometres, of which up to 100 kilometres can be covered solely on electricity.
*
Originally presented in Detroit at the beginning of the year, the BlueZERO E‑CELL is propelled exclusively by a battery-powered electric drive that allows the car to travel up to 200 kilometres on a single battery charge and completely free of local emissions.
*
The third drive version is the fuel cell powered BlueZERO F-CELL, with a range of about 400 km on electric power and therefore also without any local emissions.
All three BlueZERO models feature front-wheel drive, which is typical for this class of car. The drive components have been modularly organised by the Mercedes engineers and can be combined as needed. These include state-of-the-art liquid-cooled lithium-ion batteries with up to 35 kWh capacity, and a compact electric motor with a maximum output of 100 kW (sustained output: 70 kW). The maximum torque of 320 Nm is available from the electric motor’s first revolution, and it surpasses the value attained by today’s V6 petrol engines at 2,500 rpm. Like its two sister models, the BlueZERO E-CELL and the BlueZERO F-CELL, the BlueZERO E-CELL PLUS can accelerate from 0 to 100 km/h in less than eleven seconds. To ensure optimum range and energy efficiency, the top speed is electronically limited to 150 km/h.
"The Concept BlueZERO offers a triple demonstration of the technical maturity of alternative drive systems from Mercedes-Benz. Electric vehicles with battery electric or fuel cell drive systems will not truly be on an equal footing with today's combustion engine drive systems until the customers are confident that there is a sufficient infrastructure of electricity and hydrogen refuelling stations,” says Prof. Herbert Kohler, Head of E-Drive and Future Mobility and also Chief Environmental Officer at Daimler.
Concept BlueZERO: Modular architecture for flexibility and efficiency
The three BlueZERO variants were developed on the basis of the unique sandwich-floor architecture known from the A-Class and B-Class. The advantage of the enhanced design is that the key drive components are installed in the vehicle’s underbody in such a way that they take up little space, ensure a good centre of gravity, and are maximally protected. The BlueZERO models therefore differ considerably from conventionally designed electric cars, which have heavy and voluminous storage batteries installed in the boot, for example, or in the area of the backseat. All three BlueZERO variants share key technological components and have identical designs and vehicle dimensions. Even though they have compact exterior dimensions, the 4.22-meter-long BlueZERO models have a spacious and versatile interior and cargo space. The vehicles’ five full-size seats, approximately 450 kilograms of payload, and more than 500 litres of cargo capacity make them suitable family cars.
“Our modular system permits different drive configurations for each customer requirement,” says Dr. Thomas Weber, the Daimler Board of Management Member responsible for Group Research and Mercedes-Benz Cars Development. “The improved sandwich floor platform serves as the perfect basis for a diverse range of vehicles with electric drives. We are currently developing an additional platform for future compact models that have drive systems using optimized internal combustion engines. The smart linking of both architectures will allow us to expand our product range in an extremely flexible and efficient manner. Beginning in 2009, we will manufacture the first small batch of Mercedes fuel cell cars. In 2010, they will be followed by a small batch of Mercedes-Benz vehicles that run solely on electric power supplied by a battery. Thanks to these measures, we are excellently positioned for the future.”
Electric powered vehicles are fun to drive

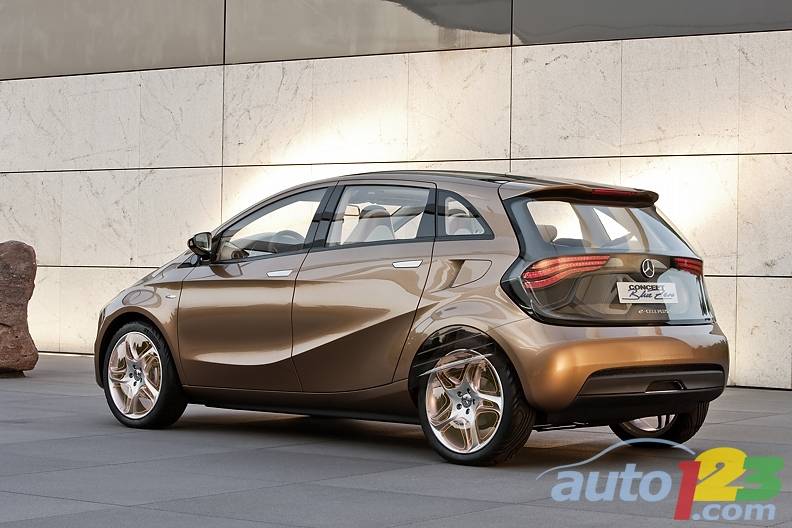

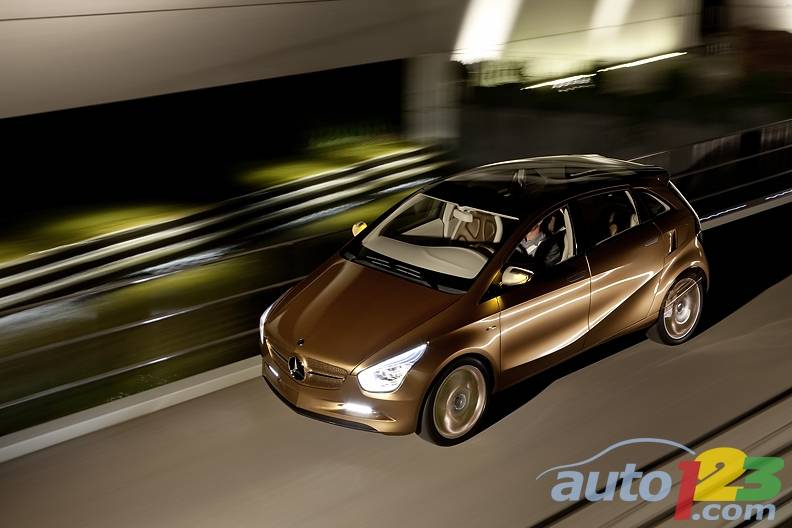

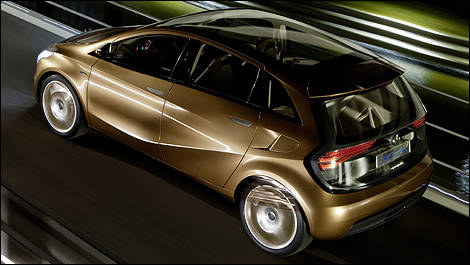

Mercedes-Benz vehicles will continue to combine environmental awareness and driving fun in future. One way in which the Mercedes-Benz designers have emphasised this aspiration is by introducing paint finishes in three new ALU-BEAM colours. Each of the three variants makes its individual mark: Confident ALU-BEAM Copper was chosen for the BlueZERO E-CELL PLUS. The BlueZERO E-CELL is painted a fresh ALU-BEAM yellow; the BlueZERO F-CELL appears in ALU-BEAM green.
photo:Mercdes-Benz
