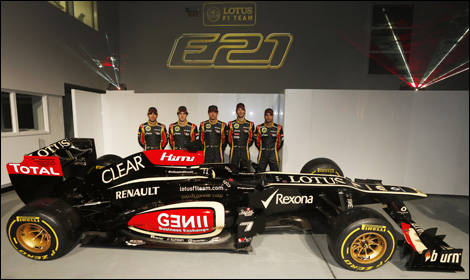

Here is a selection of photos of the Lotus E21 Formula 1 launched yesterday, Monday at the team base in Enstone, UK.
The E21 is powered by a Renault Sport RS27-2013, 2.4 litre V8 engine.
Chassis
Moulded carbon fibre and aluminium honeycomb composite monocoque, manufactured by Lotus F1 Team and designed for maximum strength with minimum weight. RS27-2012 V8 engine installed as a fully-stressed member.
Front Suspension
Carbon fibre top and bottom wishbones operate an inboard rocker via a pushrod system. This is connected to a torsion bar and damper units which are mounted inside the front of the monocoque. Aluminium uprights and OZ machined magnesium wheels.
Rear Suspension
Carbon fibre top and bottom wishbones with pull rod operated torsion springs and transverse-mounted damper units mounted in the top of the gearbox casing. Aluminium uprights and OZ machined magnesium wheels.
Transmission
Seven-speed semi-automatic titanium gearbox with reverse gear. “Quickshift” system in operation to maximise speed of gearshifts.
Fuel System
Kevlar-reinforced rubber fuel cell by ATL.
Cooling System
Separate oil and water radiators located in the car’s sidepods and cooled using airflow from the car’s forward motion.
Electrical
MES-Microsoft Standard Electronic Control Unit.
Braking System
Carbon discs and pads. Calipers by AP Racing. Master cylinders by AP racing and Brembo.
Cockpit
Removable driver’s seat made of anatomically formed carbon composite, with six-point or eight-point harness seat belt. Steering wheel integrates gear change, clutch paddles, and rear wing adjuster.
KERS
Motor generator unit driving into front of engine with batteries as an energy store. Motor Generator supplied by Renault Sport F1. Electronic control unit by Magneti-Marelli.
Dimensions:
Front Track: 1450 mm
Rear Track: 1400 mm
Overall Length: 5088 mm
Overall Height: 950 mm
Overall Width: 1800 mm
Overall Weight: 642kg, with driver, cameras and ballast
The E21 is powered by a Renault Sport RS27-2013, 2.4 litre V8 engine.
 |
| Photo: Lotus F1 Team |
Chassis
Moulded carbon fibre and aluminium honeycomb composite monocoque, manufactured by Lotus F1 Team and designed for maximum strength with minimum weight. RS27-2012 V8 engine installed as a fully-stressed member.
Front Suspension
Carbon fibre top and bottom wishbones operate an inboard rocker via a pushrod system. This is connected to a torsion bar and damper units which are mounted inside the front of the monocoque. Aluminium uprights and OZ machined magnesium wheels.

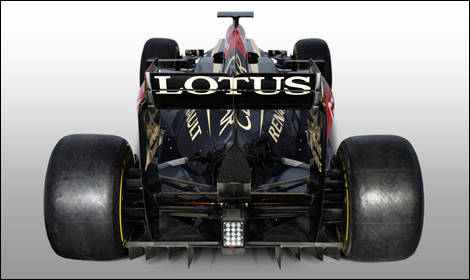

Rear Suspension
Carbon fibre top and bottom wishbones with pull rod operated torsion springs and transverse-mounted damper units mounted in the top of the gearbox casing. Aluminium uprights and OZ machined magnesium wheels.
 |
| Photo: Lotus F1 Team |
Transmission
Seven-speed semi-automatic titanium gearbox with reverse gear. “Quickshift” system in operation to maximise speed of gearshifts.
Fuel System
Kevlar-reinforced rubber fuel cell by ATL.
Cooling System
Separate oil and water radiators located in the car’s sidepods and cooled using airflow from the car’s forward motion.
 |
| Photo: Lotus F1 Team |
Electrical
MES-Microsoft Standard Electronic Control Unit.
Braking System
Carbon discs and pads. Calipers by AP Racing. Master cylinders by AP racing and Brembo.
Cockpit
Removable driver’s seat made of anatomically formed carbon composite, with six-point or eight-point harness seat belt. Steering wheel integrates gear change, clutch paddles, and rear wing adjuster.
 |
| Photo: Lotus F1 Team |
KERS
Motor generator unit driving into front of engine with batteries as an energy store. Motor Generator supplied by Renault Sport F1. Electronic control unit by Magneti-Marelli.
Dimensions:
Front Track: 1450 mm
Rear Track: 1400 mm
Overall Length: 5088 mm
Overall Height: 950 mm
Overall Width: 1800 mm
Overall Weight: 642kg, with driver, cameras and ballast
 |
| Photo: Lotus F1 Team |
 |
| Photo: Lotus F1 Team |
