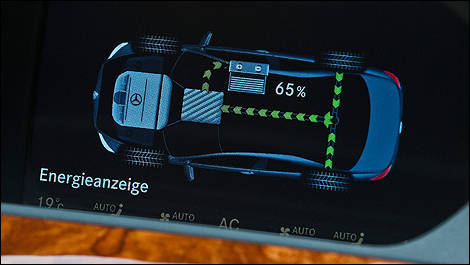

When the vehicle is braked the electric motor acts as a generator, and is able to recover braking energy by a process of recuperation. Working in finely tuned partnership, the electric motor supplements the braking effect of the combustion engine and the wheel brakes to deliver a smoothly progressive braking action. The recuperated energy is stored in a compact yet highly efficient lithium-ion battery in the engine compartment, and made available when required. This complex system is managed by a high-performance control unit, which is likewise located in the engine compartment.
Optimised thermal efficiency lowers the engine's fuel consumption
The 3.5-litre V6 petrol engine with variable valve control has been thoroughly re-engineered and improved. In the process the development engineers made use of the advantages offered by the Atkinson principle,where the expansion phase is longer than the compression phase. The intake valve is kept open slightly longer between the intake and compression phases, which improves the engine's thermal efficiency while reducing the specific fuel consumption and untreated emissions. A new cylinder head, different pistons and a modified camshaft with different camshaft control increase the output by 5 kW/7 hp to 205 kW/279 hp - while reducing fuel consumption at the same time.
"Boost" effect for even more driving pleasure
The overall system offers extensive benefits: firstly by helping to save fuel, and secondly by increasing driving pleasure with the help of the "boost" effect, where the electric motor gives powerful assistance to the petrol engine with its maximum torque of 160 newton metres right from the beginning of the fuel-intensive acceleration phase. This means that the hybrid drive system of the S 400 HYBRID moves off powerfully even from very low engine speeds, as the torque curve impressively confirms. The additional torque of the hybrid module also has a consistently positive effect during subsequent acceleration phases. In all driving situations, the driver therefore benefits from the interaction between the two units in the form of powerful responsiveness and muscular torque - but without an increased fuel consumption.
The S 400 HYBRID accelerates from zero to 100 km/h in 7.3 seconds, and reaches an electronically governed top speed of 250 km/h. The S 400 HYBRID betters the already very favourable NEDC fuel consumption of the conventionally powered S 350 by up to 2.2 litres per 100 kilometres. CO2 emissions are reduced by about 21 percent.
The S 400 BlueHybrid is produced at the Sindelfingen plant, together with the other S-Class models. The petrol engine, 7G-TRONIC automatic transmission and electric motor are first put together to form a hybrid module, then delivered to the production line as a unit.
 |
Optimised thermal efficiency lowers the engine's fuel consumption
The 3.5-litre V6 petrol engine with variable valve control has been thoroughly re-engineered and improved. In the process the development engineers made use of the advantages offered by the Atkinson principle,where the expansion phase is longer than the compression phase. The intake valve is kept open slightly longer between the intake and compression phases, which improves the engine's thermal efficiency while reducing the specific fuel consumption and untreated emissions. A new cylinder head, different pistons and a modified camshaft with different camshaft control increase the output by 5 kW/7 hp to 205 kW/279 hp - while reducing fuel consumption at the same time.
"Boost" effect for even more driving pleasure
The overall system offers extensive benefits: firstly by helping to save fuel, and secondly by increasing driving pleasure with the help of the "boost" effect, where the electric motor gives powerful assistance to the petrol engine with its maximum torque of 160 newton metres right from the beginning of the fuel-intensive acceleration phase. This means that the hybrid drive system of the S 400 HYBRID moves off powerfully even from very low engine speeds, as the torque curve impressively confirms. The additional torque of the hybrid module also has a consistently positive effect during subsequent acceleration phases. In all driving situations, the driver therefore benefits from the interaction between the two units in the form of powerful responsiveness and muscular torque - but without an increased fuel consumption.
The S 400 HYBRID accelerates from zero to 100 km/h in 7.3 seconds, and reaches an electronically governed top speed of 250 km/h. The S 400 HYBRID betters the already very favourable NEDC fuel consumption of the conventionally powered S 350 by up to 2.2 litres per 100 kilometres. CO2 emissions are reduced by about 21 percent.
The S 400 BlueHybrid is produced at the Sindelfingen plant, together with the other S-Class models. The petrol engine, 7G-TRONIC automatic transmission and electric motor are first put together to form a hybrid module, then delivered to the production line as a unit.
 |
